Expression and Potential Prognostic Value of SOX9, MCL-1 and SPOCK1 in Gastric Adenocarcinoma

Introduction

Gastric cancer is the fifth most common malignancy in the world and remains the third highest cause of cancer-related mortality after lung and colorectal cancer (1). The incidence of gastric cancer in young adults is increasing, and cancers in these patients are more aggressive and present at a more advanced stage (2).

The outcomes of gastric cancer patients depend on tumor resectability (3). Although the survival in patients after curative resection has improved from 14% in the 1980s to 49% in most recent series, forty to fifty percent of the gastric cancer patients recured (3,4). Eighty percent of gastric cancer patients present with unresectable and metastatic disease (4). The discovery of druggable molecular targets especially HER2/neu and HER2/neu monoclonal antibody therapy have significantly improved the median overall survival (5), suggesting the benefit of additional biomarker discovery.

The variable prognosis and response to treatment are partially dictated by the heterogeneity of the disease, which is associated with treatment resistance, non-uniform therapeutic effects, and clonal evolution of tumor cells (6). Although gastric cancer can be classified under four major molecular subtypes: Epstein–Barr virus, microsatellite instability, genomically stable, and chromosomal instability, based on predominantly expressed genes (7), the differences within each group are not negligible (8). Additional biomarkers or prognostic factors may be needed to further stratify the tumors in each major molecular subtype (8).

Here we present a study on the expression of emerging biomarkers SOX9, MCL-1 and SPOCK1 in a gastric cancer tissue microarray (TMA). Their correlation with differentiation markers, expression of PD-L1 and HER2/neu and prognosis was also explored.

Materials and Methods

Patients

The study included 238 consecutive primary gastric cancer patients who underwent surgical resection with no preoperative treatment at the University of Texas MD Anderson Cancer Center between 1987 and 2006. High-density tissue TMA was assembled from selected regions of archived formalin-fixed paraffin-embedded donor tissue containing viable tumor and normal tissue elements as described previouslyf (9). Clinicopathologic parameters collected in this study include age, race, gender, tumor differentiation (classified as well/moderately differentiated, poorly differentiated or signet ring cell carcinoma), pathologic TNM stage of the tumor and survival. The study was approved by institutional review board (IRB#: LAB07-0592).

Immunohistochemistry

The expression of SOX9, SPOCK1 (Testican-1), MCL-1, MUC2, MUC5AC, CD10, PD-L1 and HER2/neu was assessed by immunohistochemical stains (Table 1).

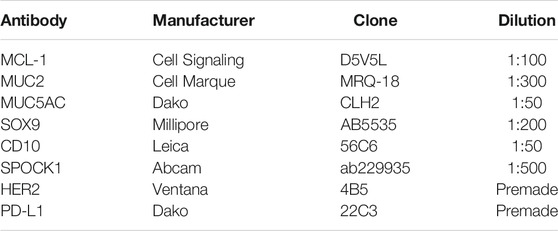

TABLE 1. Antibody information.

The immunoreactivity was quantified as described (10) using a weighted histoscore method based on intensity of staining as well as percentage of cell positivity. Thirty percent of total core number was scored by two observers (WL and HS) independently. The HER2/neu immunohistochemical stain was scored based on ASCO and CAP guidelines (11). PD-L1 was scored based on combined positive score with a cutoff of 1 or more (12).

Cases with incomplete data, including the cases whose corresponding tissue cores were lost during staining or cases with no tumor present in corresponding tissue cores, were excluded. Therefore, different number of cases were scored for each marker.

Statistical Analysis

Categorical variables were summarized by frequencies and percentages and compared between groups with Fisher’s exact tests; continuous variables were summarized using medians and ranges, and assessed between groups by Wilcoxon rank sum tests or Kruskal-Wallis rank sum tests. Cox models and Firth penalized Cox models were used to evaluate the associations between survival outcome and covariates of interest.

Results

Patient and Tumor Characteristics

The majority of the patients were male Caucasians (59.7%). The median age at initial diagnosis was 64.1 years (range 28.4–89.6). Patient and tumor characteristics are summarized in Table 2.

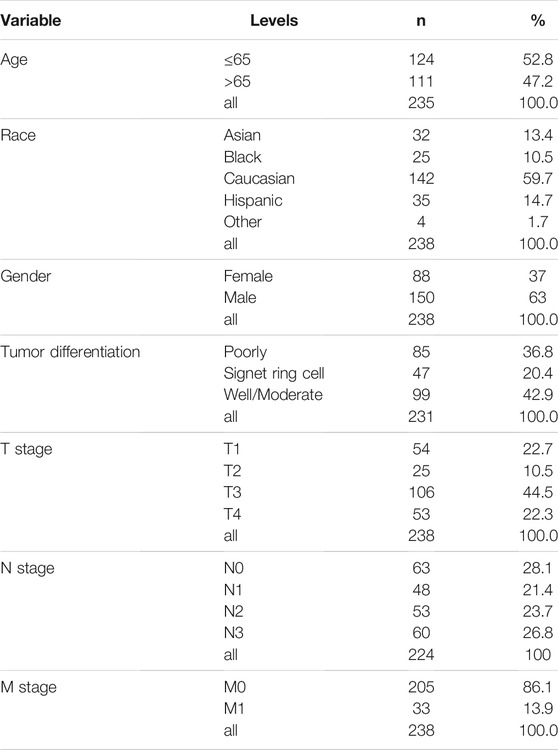

TABLE 2. Patient and tumor characteristics.

Expression of Biomarkers in Gastric Cancer

The expression of SOX9, SPOCK1 (Testican-1), MCL-1 was assessed by immunohistochemical stains and correlated with differentiation markers MUC2, MUC5AC, CD10 as well as prognostic/predictive markers PD-L1 and HER2/neu. As previously reported, SOX9 showed nuclear stain (13) and MCL-1 showed cytoplasmic staining (14) (Figure 1). SPOCK1, however, showed three different patterns including apical (staining at the apical cell membrane of tumor cells), cytoplasmic and nuclear staining (Figure 1).

FIGURE 1. Biomarker expression in gastric cancer (by IHC, ×20). SPOCK1 apical (A), cytoplasmic (B) and nuclear (C) expression. SOX9 nuclear expression (D). MCL-1 cytoplasmic expression (E).

Based on how the scores are distributed, SOX9 expression was classified as high, moderated and low. MCL-1 and SPOCK1 expression was classified as high and low. Among 201 tumors scored for SOX9, 64 (31.8%) showed high expression, 62 (30.9%) showed moderate expression, and 75 (37.3%) showed low expression; Among 184 tumors scored for MCL-1, 93 tumors (51%) showed high expression; Among 144 tumors scored for SPOCK1, 78 tumors (54%) showed high nuclear expression, 107 tumors (74%) showed high cytoplasmic expression, and only 2 cases showed apical membranous expression.

Correlations Between Biomarkers

SOX9 expression was positively correlated with MUC2 expression (p = 0.01) when SOX9 expression was categorized as low, moderated and high. When median was used, high SOX9 expression was associated with male gender (p = 0.036), negative PD-L1 (p = 0.034) and high SPOCK1 nuclear expression (p = 0.029). MCL-1 expression was associated with well and moderately differentiated tumors (p = 0.026) and lower T stage (p = 0.032). However, no correlation was discovered with other clinicopathologic parameters and other biomarker expression using either low, moderated and high expression or median.

Prognostic Value of Biomarkers

The median survival time was 28.7 (21.8–42.2) months. Univariate analysis (Table 3) demonstrated that high pathologic TNM stage and nuclear SPOCK1 expression were associated with a worse overall survival, while Asian race was associated with better prognosis. We also fitted multivariate Cox models including covariates of race, M stage, tumor differentiation, SOX9, where these variables had p-values less than 0.25 in univariate analysis. As tumor stage of T, N and M are highly correlated, we only included M stage as it had more complete data. Other biomarkers or covariates with substantially small number of observations were not included. Multivariable analysis (Table 4) demonstrated that presence of metastasis (pM1) and SOX9 expression were predictors of poor prognosis, while better tumor differentiation was a predictor of good prognosis. In subgroup analyses (Table 4), the prognostic potential of SOX9 expression persisted only in patients with poorly differentiated tumors. MCL-1 was not associated with overall survival.

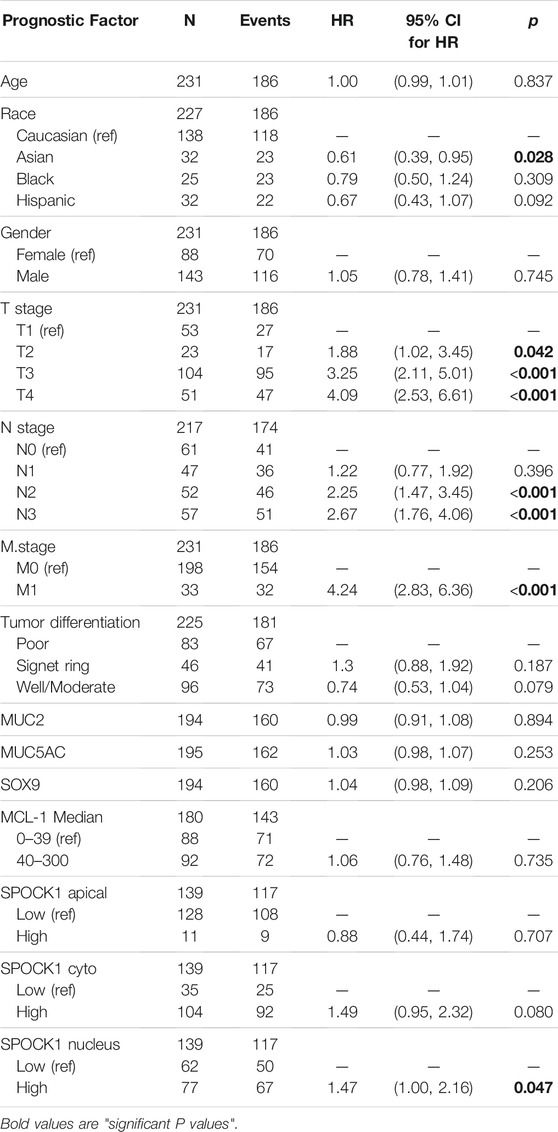

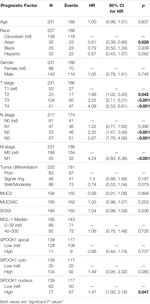

TABLE 3. Univariate analysis for overall survival.

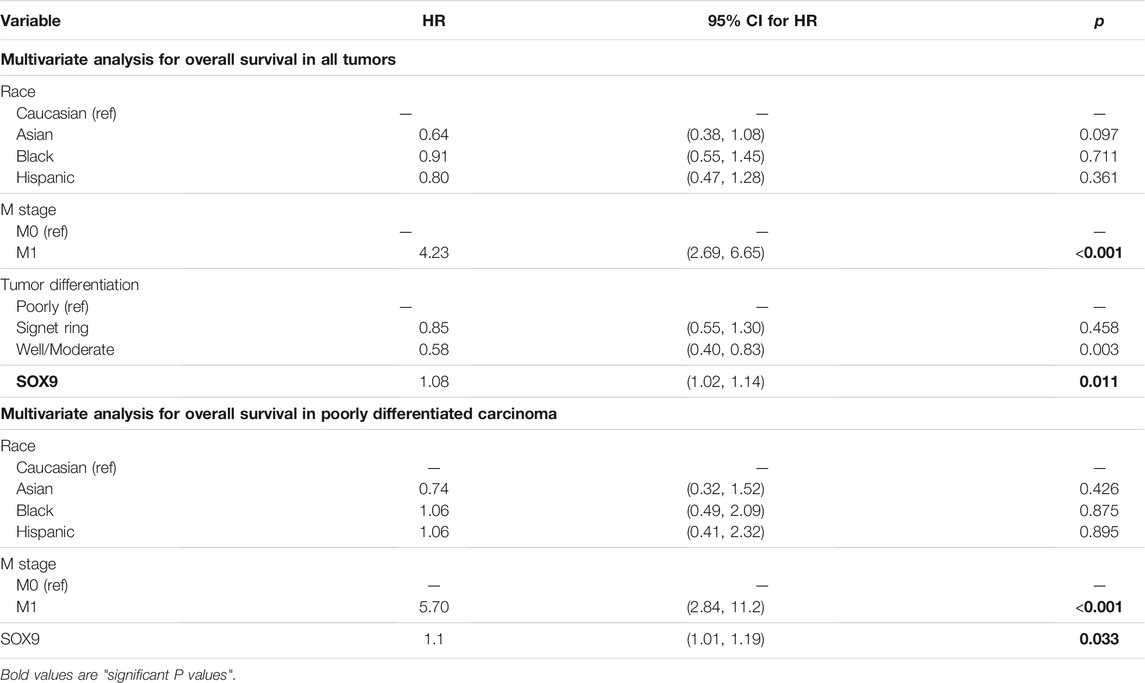

TABLE 4. Multivariate survival analysis.

Discussion

This study examined the expression and prognostic potentials of several emerging gastric cancer biomarkers. We found SOX9 was frequently expressed in gastric cancer. SOX9 is a transcription factor belonging to SOX (from Sry-related HMG box) family which is characterized by the presence of a conserved HMG DNA–binding domain. In embryogenesis and adulthood, SOX9 regulates cell fate decisions and stem cell maintenance including the gastrointestinal tract (15). SOX9 was found to be overexpressed in a wide range of human malignancies and its expression correlated with tumor aggressiveness (16). In human cancer, its target genes include genes promoting stemness, extracellular matrix, cell adhesion, cytoskeleton remodeling and invasion (17). SOX9-positive cells have characteristics of cancer stem cell. They are capable of self-renewal and differentiation to both SOX9-positive and SOX9-negative populations (18). SOX9-positive cells have high proliferation ability and are involved in epithelial-mesenchymal transition and chemotherapy resistance (18,19). Therefore, SOX9 is considered a cancer stem cell marker. SOX9 is involved in tumor initiation through Wnt/β-catenin pathway as well as tumor invasion through activation of TGFb/Smad signaling (17,18). Co-activation of NOTCH signaling pathway has also been identified (20). In normal human stomach, SOX9 is predominantly expressed in the neck/isthmus of the pyloric region with a small amount expressed in the neck/isthmus of the corpus (21). In mucosa with intestinal metaplasia, SOX9 expression is located at the base of the mucosa and colocalized in cells with the highest proliferation (21). SOX9 expression is significantly increased in Helicobacter pylori–positive gastric biopsies and its expression is required for bacteria-induced gastric cancer cell proliferation in a Wnt/β-catenin pathway dependent manner (19). Similar to our study, a prior study has also demonstrated SOX9 expression is common in gastric cancer (22). The correlation of SOX9 expression with tumor progression is controversial. A few studies suggested that elevated SOX9 expression was associated with either tumor aggressiveness or worse patient survival: One small scale study based on gastric cancer biopsies demonstrated high SOX9 expression was associated with more advanced tumor TNM stage and lower overall survival and disease-free survival (19); Another study only found correlation of SOX9 expression with TNM and clinical stages (23); Two other cohort studies did not find any significant relationship between altered expression of SOX9 protein and clinicopathological parameters including overall survival (24,25). On the contrary, one study found an inverse correlation between SOX9 expression and advanced tumor stage, vessel infiltration, nodal metastasis, and EBV infection (22). These contrasting findings may be attributed to varied roles of SOX9 in tumors of different degree of differentiations, tumor stages, patient populations, or dose-dependent effects. In this cohort, SOX9 expression was associated with poor prognosis especially in poorly differentiated tumors. More frequent SOX9 expression found in males might be a recapitulation of its preferential expression in male during the stage of sex development (26). The association of SOX9 expression with MUC2 (an intestinal differentiation marker) expression is consistent with its role in Helicobacter pylori infection and overrepresentation of intestinal-type histology in Helicobacter pylori-related gastric cancers (27). The negative association of SOX9 with PD-L1 suggests gastric cancer with “stem cell features” might be resistant to PD-L1-inhibitor-based immunotherapy.

The study discovered different expression patterns of SPOCK1 and frequent nuclear and cytoplasmic SPOCK1 expression in gastric cancer. SPOCK1 is a matricellular glycoprotein belonging to a novel Ca(2+)-binding proteoglycan family. Members of this protein family including SPOCK1 (TESTICAN-1), TESTICAN-2, TESTICAN-3 and SPARC share a similar N-terminus, follistatin-like domain, and C-terminus. They are involved in cell proliferation, adhesion, and migration (28). High tumoral SPOCK1 expression has been associated with increased growth, invasiveness and metastasis in many cancer types (29,30). Although the regulators of SPOCK1 vary in different cancer types, its tumor-promoting effects are predominantly through PI3K/Akt and Wnt/beta-catenin pathways (31). Stromal SPOCK may be important too because it modifies composition of stromal collagen and enables growth of pancreatic ductal adenocarcinoma in response to tumor-generated TGF-beta (32). The potential importance of SPOCK1 in gastric cancer was first raised in a genome-wide study that found SPOCK1 expression was upregulated 10-fold in gastric cancer (33). The elevated SPOCK1 expression has been associated with increased metastasis and a poor prognosis in patients with gastric cancer (34). SPOCK1 facilitates gastric cancer cell invasion and metastasis in vitro and mechanism appears to involve Slug-induced epithelial mesenchymal transition (34). In this cohort, the nuclear SPOCK1 expression correlated with a worse overall survival in univariate analysis. In addition, SPOCK1 expression correlated with SOX9 expression. Similar interaction has been identified in neuroblastoma in which significantly decreased SPOCK1 RNA levels were detected in SOX9 knockout neuroblastoma cells (35). These findings suggest potential interaction between two pathways.

Myeloid leukemia cell differentiation protein 1 (MCL-1) is an anti-apoptotic member of the BCL2 family proteins (36). MCL-1’s anti-apoptotic function is fulfilled by sequestering pro-apoptotic proteins BAK and BAX (37). In addition to anti-apoptosis, MCL-1 also promotes epithelial-mesenchymal transition of human cancer cells (38). In gastric cancer, MCL-1 expression has been correlated with poor prognosis (39) and resistance to chemotherapy (40). Suppression of MCL-1 produced a significant increase in apoptosis and up to 60% decrease in gastric cancer cell growth (41). The expression of MCL-1 in stomach is regulated by hypoxia-inducible factor 1 alpha (HNF1-α) in Helicobacter pylori-infected human gastric epithelium (42) and HMGB1 in gastric cancer cells (43). Our study did not confirm the prognostic value of MCL-1. We did find, however, that MCL-1 expression was associated with well and moderately differentiated tumors and lower T stage. These findings are different from prior studies. Since all the prior studies were published on Asian populations, the difference might be explained by different oncogenic etiologies. Alternatively, MCL-1’s activity, but not quantity, might be upregulated in poorly differentiated or high stage tumors by post-transcriptional regulation. Since IHC only measures protein quantity, it would not be able to identify the correlation between MCL-1 and tumor aggressiveness.

Our study was limited by drawbacks inherent to TMA such as nonrepresentative tumor sampling and staining artifacts (especially edge artifact). Further validation in full tissue sections is warranted.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Ethics Statement

The studies involving human participants were reviewed and approved by University of Texas MD Anderson Cancer Center. Written informed consent for participation was not required for this study in accordance with the national legislation and the institutional requirements.

Author Contributions

Conception or design of the work: WL and DT. Data collection: WL, TN, HS, JL, and DT. Data analysis and interpretation: JM, RB, WL. Drafting the article: WL. Critical revision of the article: WL, TN, HS, JM, JL, AC, and DT. Final approval of the version to be published: WL, TN, HS, JM, JL, RB, AC, and DT.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
